syswind model

Centralized corporate security with cost-effective branch infrastructure, IT and OT network devices, and stable data communication.

FOCUS ON EFFICIENCY AND ENTERPRISE-GRADE SECURITY

The solution aims to provide enterprise-class centralized security for multi-site businesses with an easy-to-manage on-site infrastructure, with lower capital expenditure and operational costs.

The solution allows for the deployment of only one central Palo Alto Networks NGFW firewall, while smaller sites can connect with cost-effective Teltonika industrial devices, and all site traffic can be securely routed through the central security gateway.

CENTRALIZED ENTERPRISE SECURITY WITH ONLY ONE FIREWALL

TECHNOLOGICAL ADVANTAGES

unified internet security
central policy management
central VPN infrastructure
unified access management

ECONOMIC BENEFITS

There is no need for a separate enterprise firewall, security appliance, and license infrastructure for each site.

CENTRAL CORPORATE REMOTE ACCESS WITH BRANCH VPN ARCHITECTURE

VPN ARCHITECTURES

The system uses two separate but complementary VPN solutions to provide the company with enterprise-grade remote access protection and cost-effective on-premises branch connectivity.

Enterprise security and efficiency

SECURE COMMUNICATION BETWEEN SITES

Site-to-Site VPN connections between branch offices are provided by industrial devices with native WireGuard VPN tunnel connections.

► encrypted site communication
► fast site implementation
► stable operation even with mobile internet
► low operating costs
► simple central management
► cost-effective branch infrastructure

SECURE ACCESS FOR REMOTE USERS

Remote users access corporate systems via an SSL VPN connection using the central NGFW firewall.

► centralized enterprise security
► logable and auditable access
► enterprise-level user protection
► limited privileges
► administration delegation
► simple central management

EASY AND QUICK TO INSTALL

Transparent, standardized on-site infrastructure where routing, VPN, internet and WiFi can be provided with a single device.

► fast installation and deployment
► pre-configured devices
► minimal on-site IT requirements
► standardizable site layout
► simple scalability
► easily expandable branch IT network
► native M2M/IoT connectivity

SIMPLE OPERATION

Businesses can operate the system with their own IT team using a remote monitoring solution.

► central management
► monitoring
► firmware management
► remote device access
► client VPN management
► basic monitoring
► operational tasks

TYPICAL AREAS OF USE

Ideal for companies with multiple locations and centralized architectures where operations require a unified network and cyber security.

► retail stores
► branch offices, franchise networks
► remote industrial sites, utility metering stations
► regional warehouses
► temporary pop-up sites, project offices
► vehicles and machinery
► secure FWA internet connection
► CCTV surveillance

HOW SECURE BRANCH ACCESS WORKS

IN THE SYSWIND MODEL, WE USE EVERY COMPONENT OF THE SYSTEM WHERE IT IS MOST EFFECTIVE

Palo Alto Networks provides enterprise-grade central cyber security and secure access for remote users. The Teltonika platform provides easy-to-deploy, stable and cost-effective on-premise or in-vehicle VPN connections.

With the Syswind model, businesses get a modern, scalable and easy-to-operate infrastructure with low investment and operational costs.

CENTRAL FIREWALL

► Single central security gateway to access all locations
► Recommended device: Palo Alto Networks PA-510 NGFW
► Tasks: internet breakout, VPN hub, security policy management, central internet protection
► Cybersecurity: advanced threat protection, DNS security, URL filtering

VPN CONFIGURATIONS

► The VPN connection between the sites is provided by a central WireGuard VPN server
► The sites can communicate with the center exclusively via a fast, stable and last but not least low-resource VPN connection
► It can optionally be run in a virtualization environment, on a central server or on a dedicated VPN concentrator device.

NETWORK ELEMENTS

► On-premises routing devices provide internet connectivity by connecting.
► Recommended routers: Teltonika RUTX08, RUT241, RUT271
► Tasks: routing, wired/4G/5G internet access, VPN connection, WiFi connection
► Accessories: mobile and WiFi antennas, switches, WiFi access points for IT and OT devices

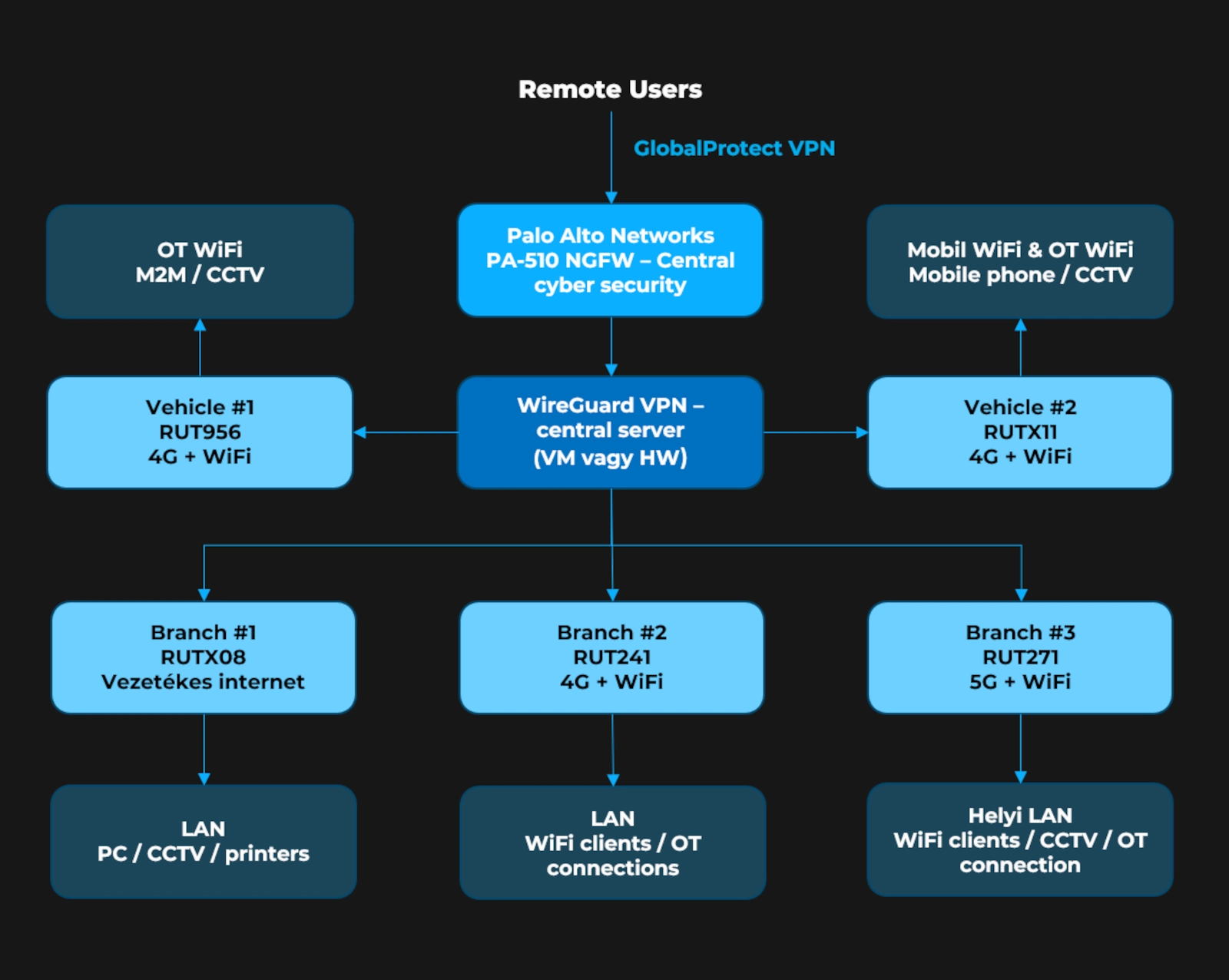

ARCHITECTURE FOR SECURE BRANCH CONNECTION

PRIMARY DEVICES OF THE SOLUTION

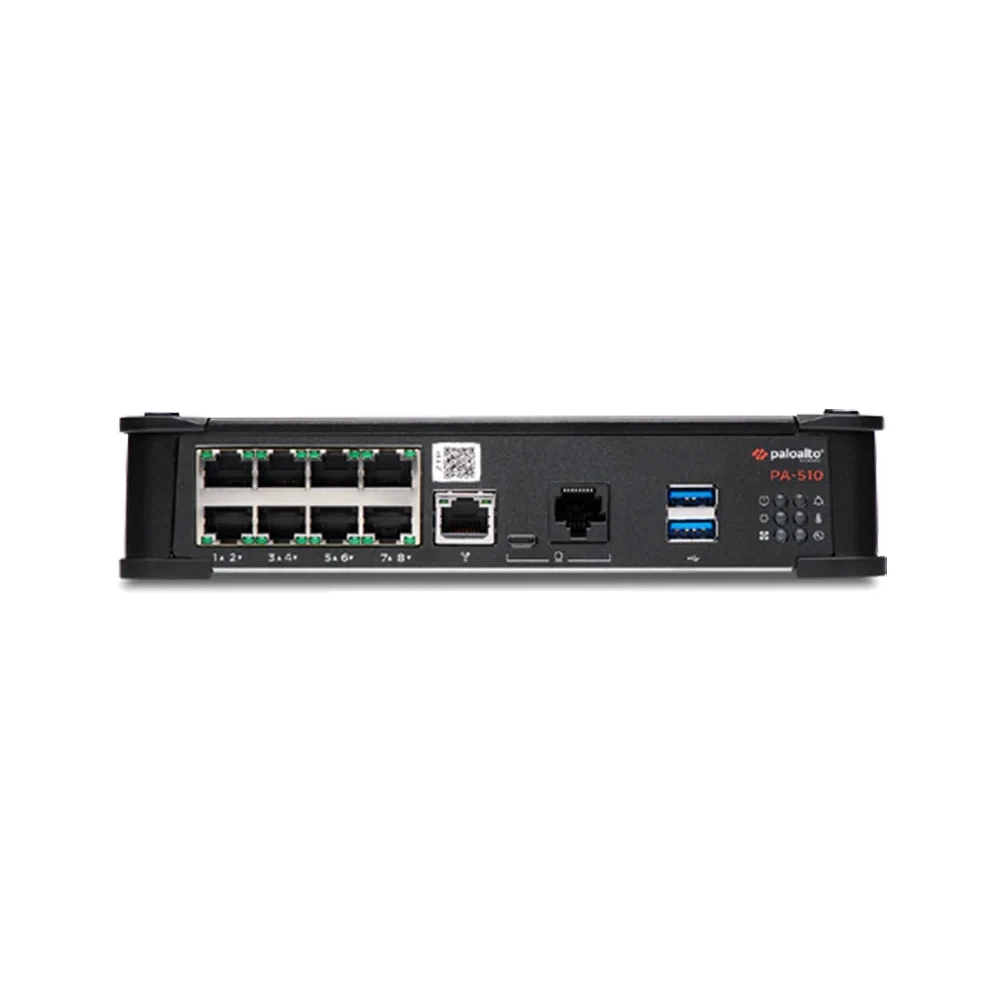

Palo Alto Networks PA-510 NGFW is a central firewall that protects the entire network from cyber threats with enterprise-class efficiency.

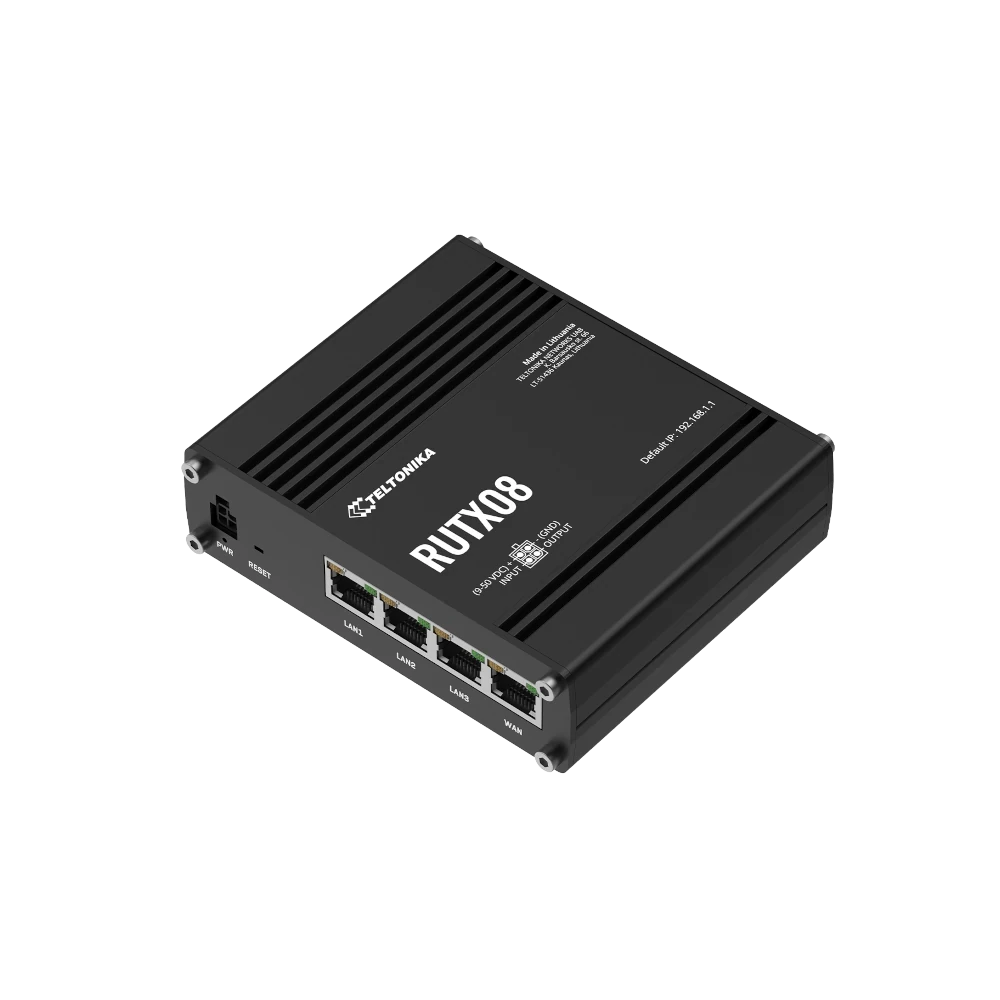

Teltonika RUTX08 router, which can be operated as a central VPN concentrator and a branch wired router.

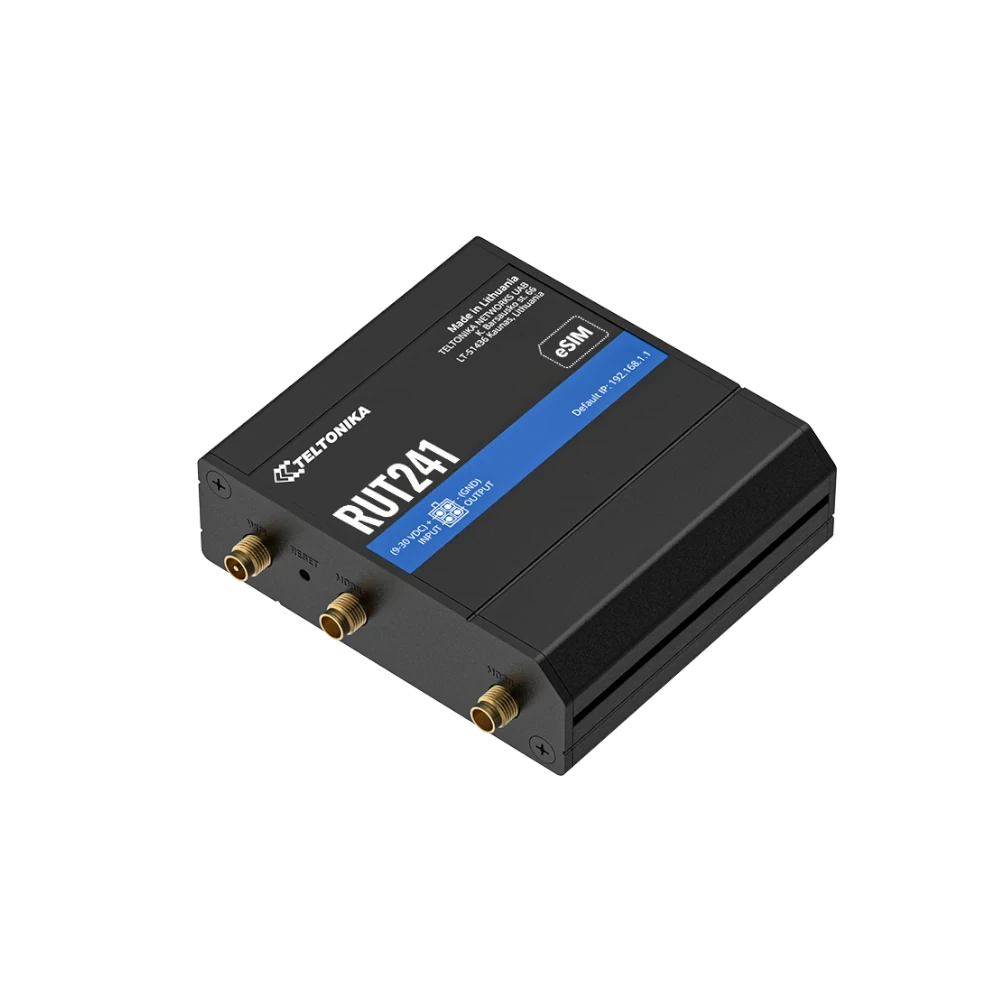

Teltonika RUT241 4G WiFi router, which can be used for smaller branch offices to serve workgroups or OT systems.

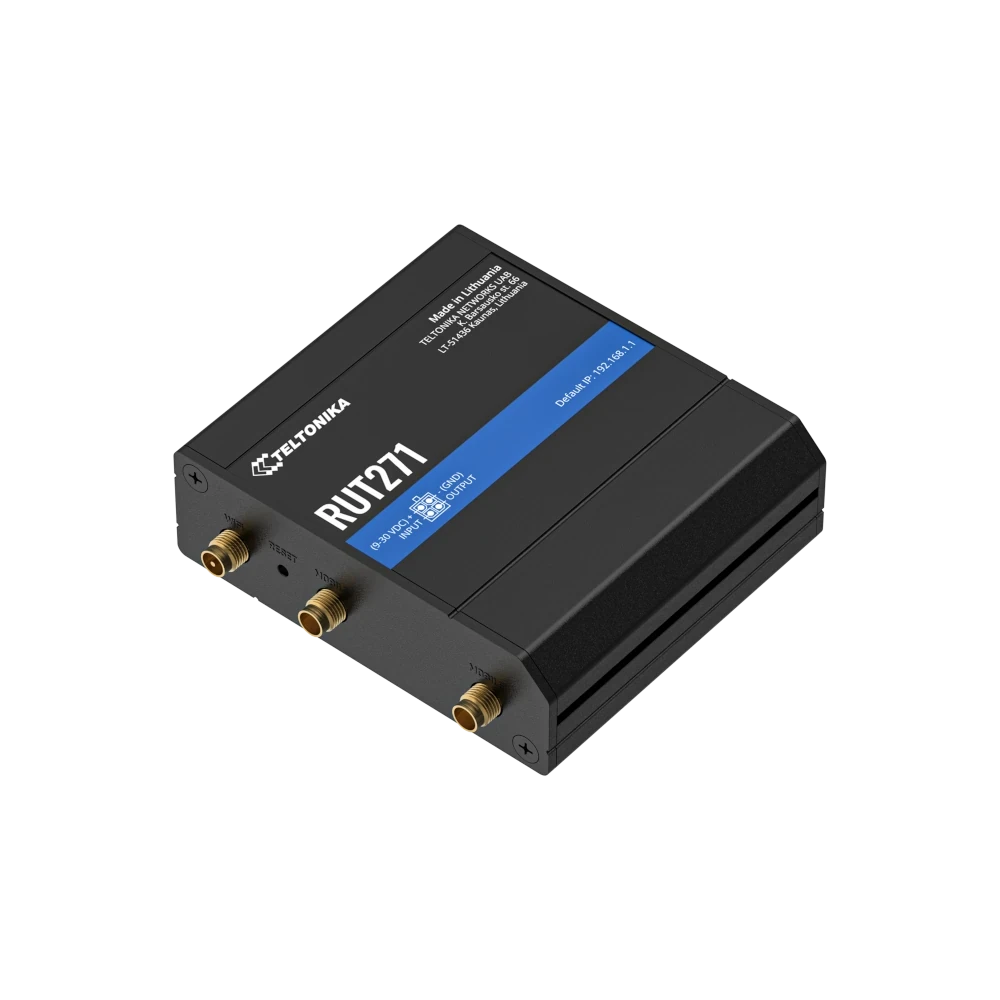

Teltonika RUT271 RC 5G WiFi router, which serves the data traffic of branches with 5G access, even in an extensive LAN network.

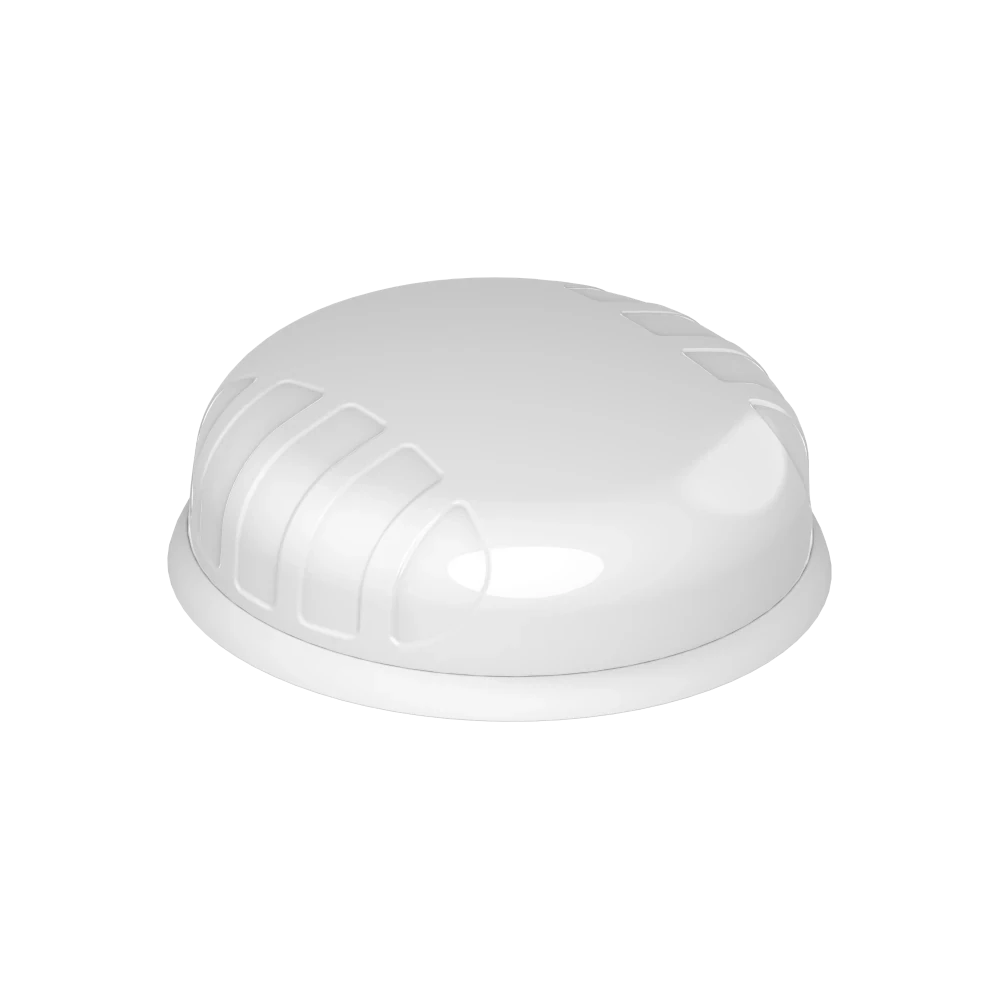

Poynting PUCK-2-V2 antenna, which easily achieves high gain for 4G and 5G reception in both branches and vehicles.

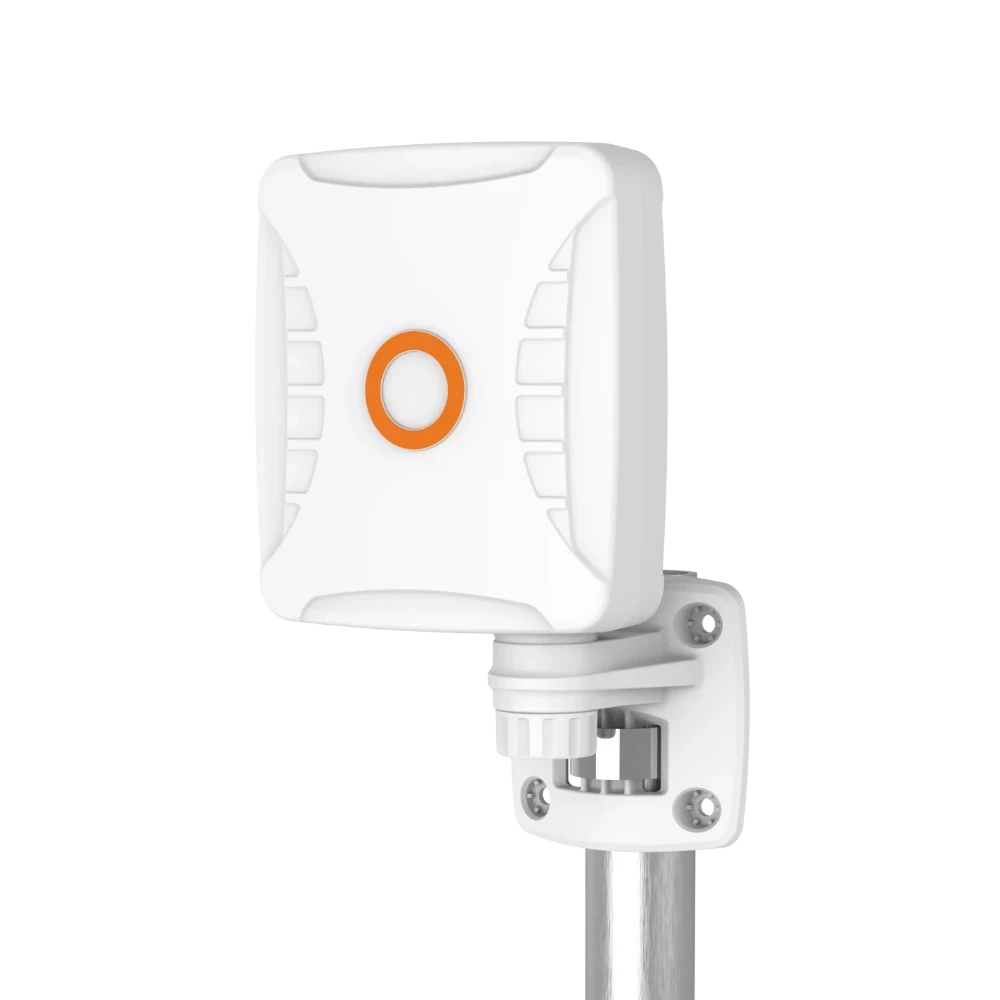

Poynting XPOL-1-5G-PLUS branch antenna, capable of achieving high gain over a wide range for 4G/5G access.

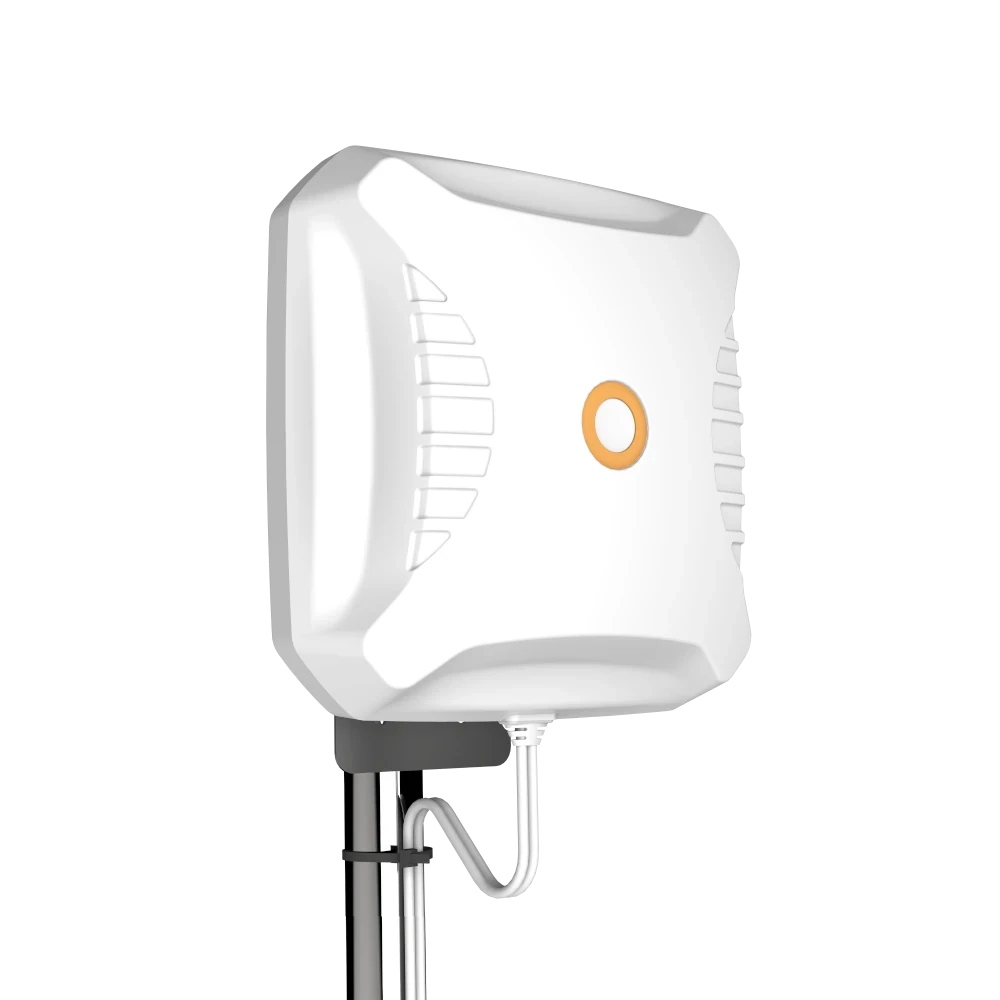

Poynting XPOL-2-5G directional branch antenna, which is capable of achieving high gain even from a long distance.

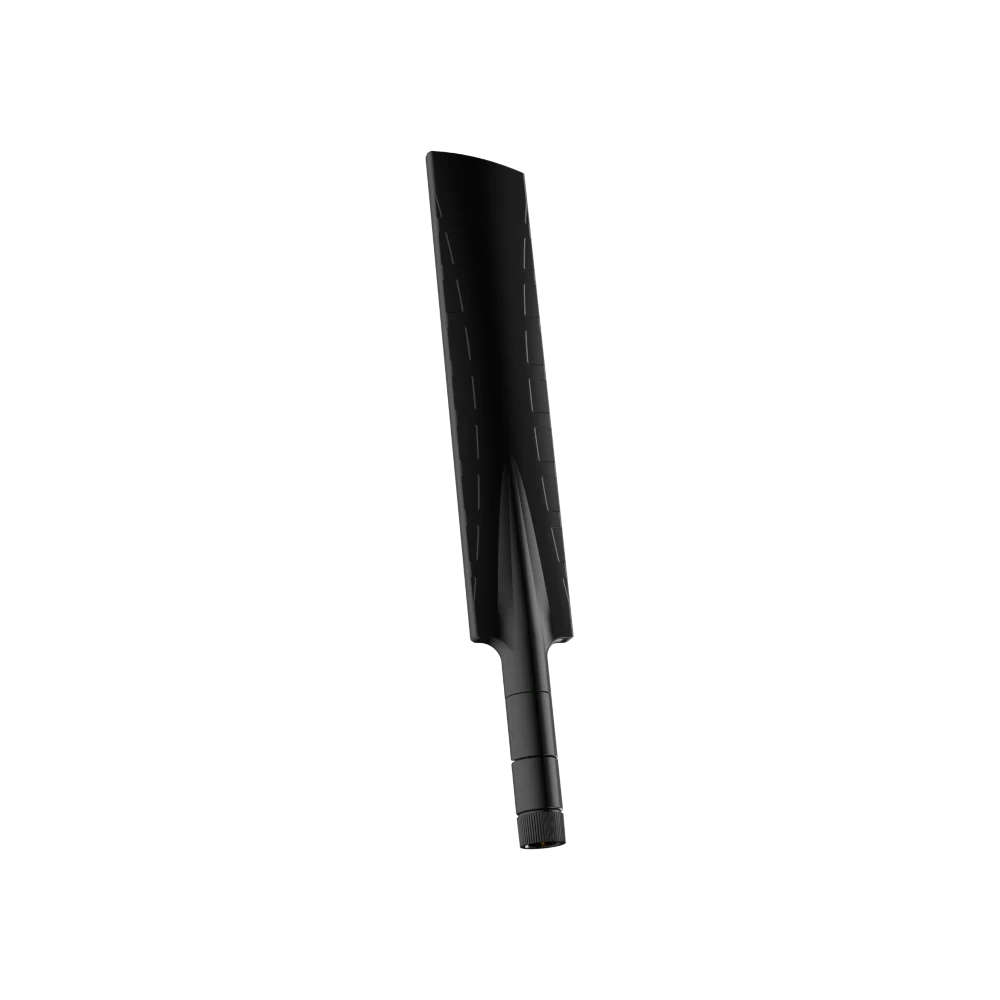

Poynting OMNI-785 WiFi antenna, which can be used to increase the WiFi capabilities of routers, with up to 4 dBi gain in a smaller branch office.

LAN DEVICES FOR BRANCHES

IT NETWORKS

Our solutions provide seamless and secure branch LAN connections and enable simple management options for administration. We support OT developers and operators in the development and implementation of industrial network and remote access to OT controllers.

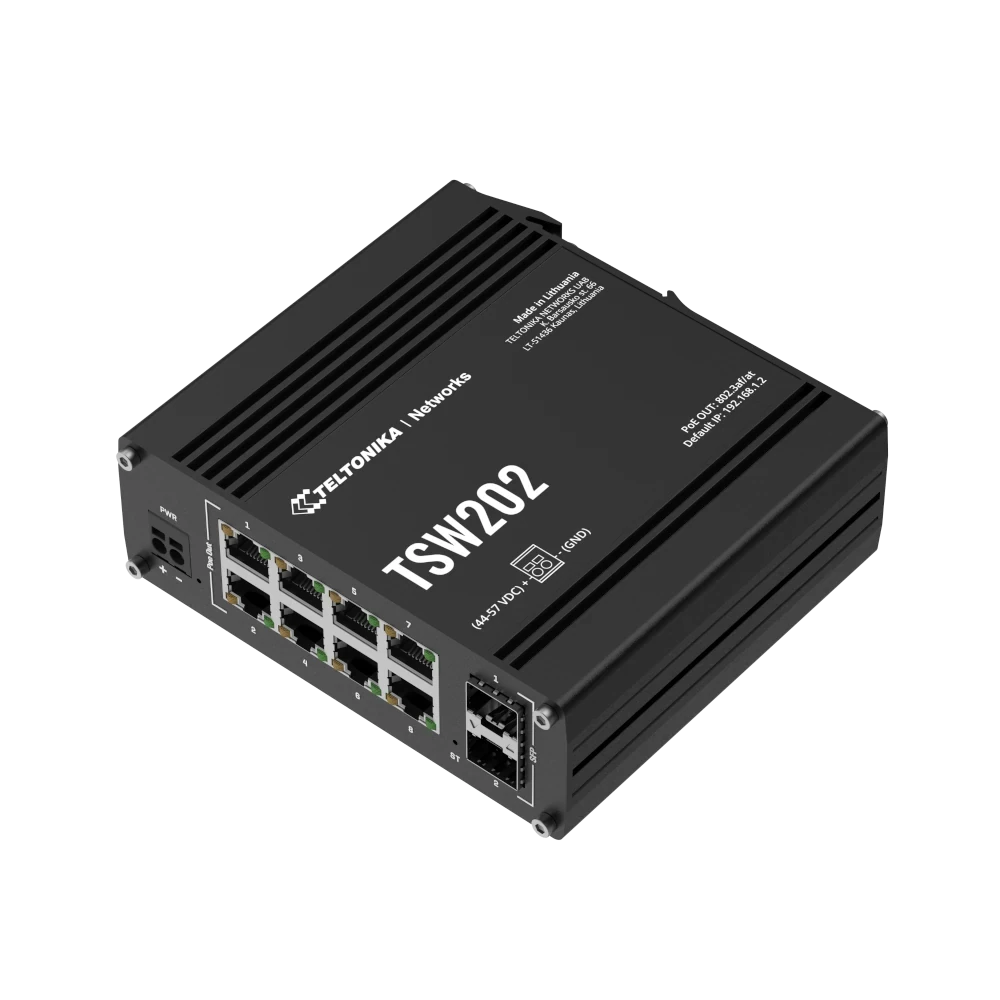

Teltonika TSW202 L2+ PoE+ DIN switch, which can serve the networking needs of smaller branch offices with PoE+ support.

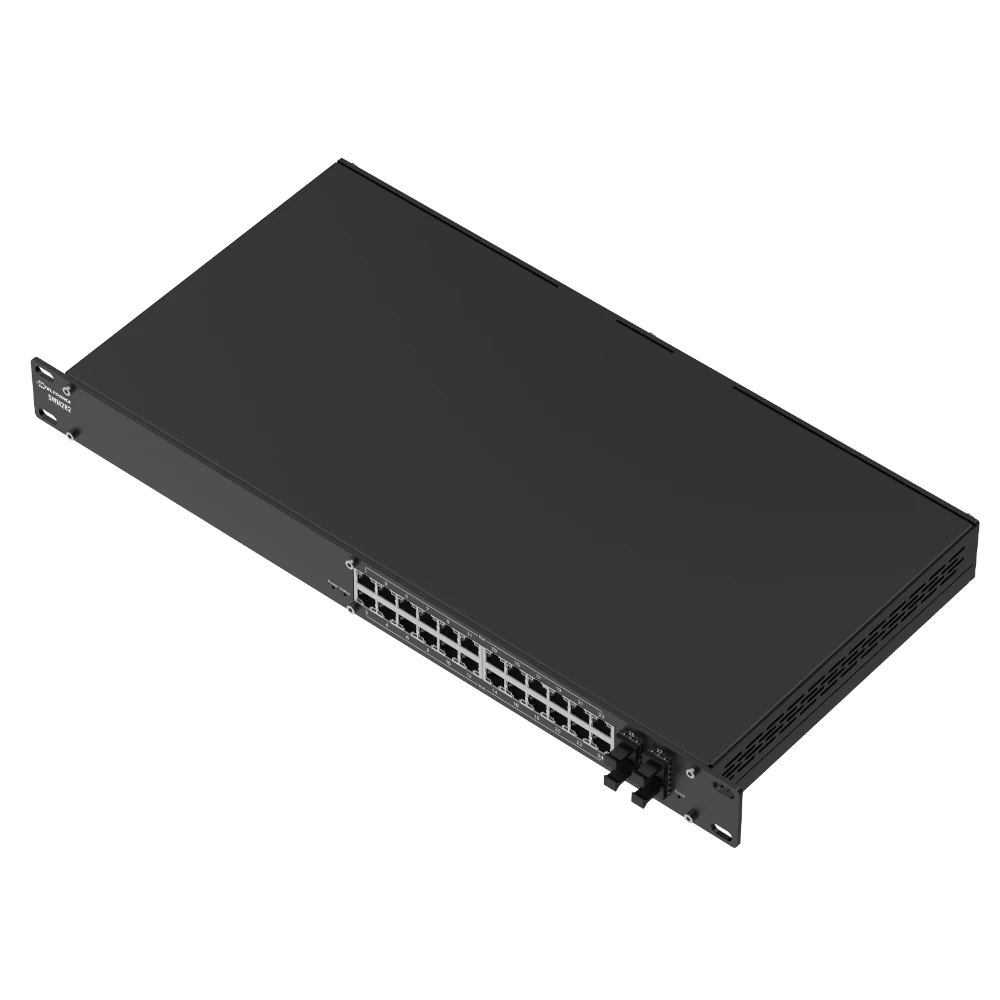

Teltonika SWM282 L2+ 24xPoE+ RM switch, which can be used to solve wired office and CCTV/IoT/OT networking in branch offices.

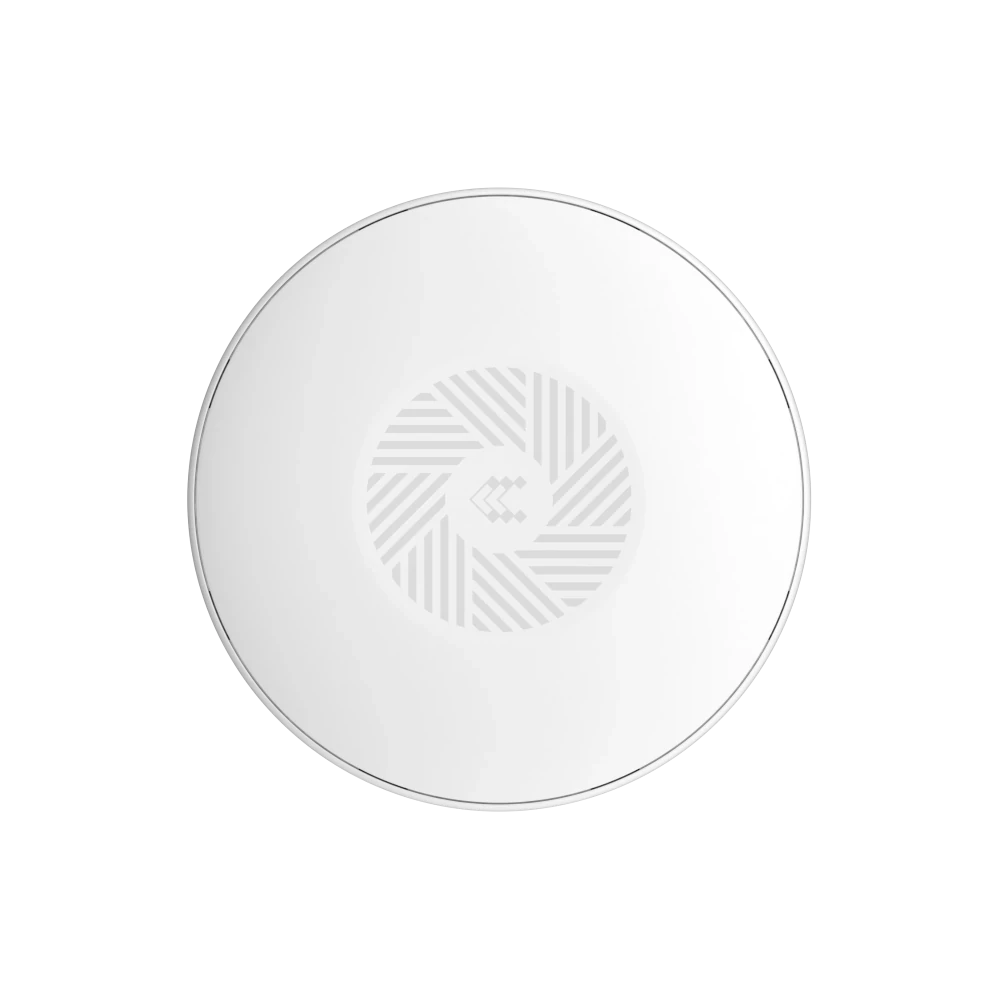

Teltonika TAP400 WiFi access point, which provides connectivity to on-site endpoint devices using the WiFi6 standard.

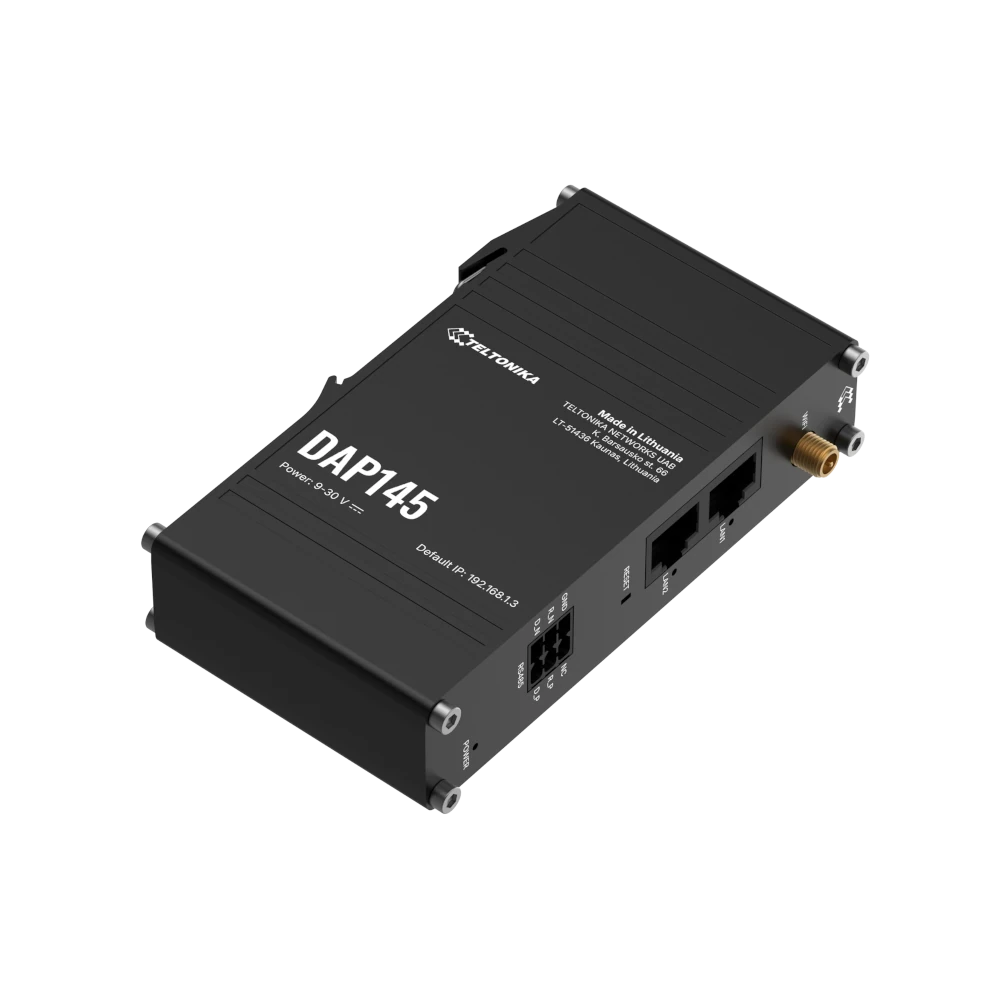

Teltonika DAP145 OT WiFi access point that can serve RJ-45/RS485 industrial controllers and devices that do not have WiFi connectivity.

MOBILITY DEVICES FOR VEHICLES

DATA COMMUNICATION WITH VEHICLES

We implement LTE or 5G wireless connectivity for critical vehicle systems, IoT and PLC solutions. We ensure stable internet connectivity with industrial-grade antenna solutions and enable native communication between devices using industrial protocols, beyond classic network needs.

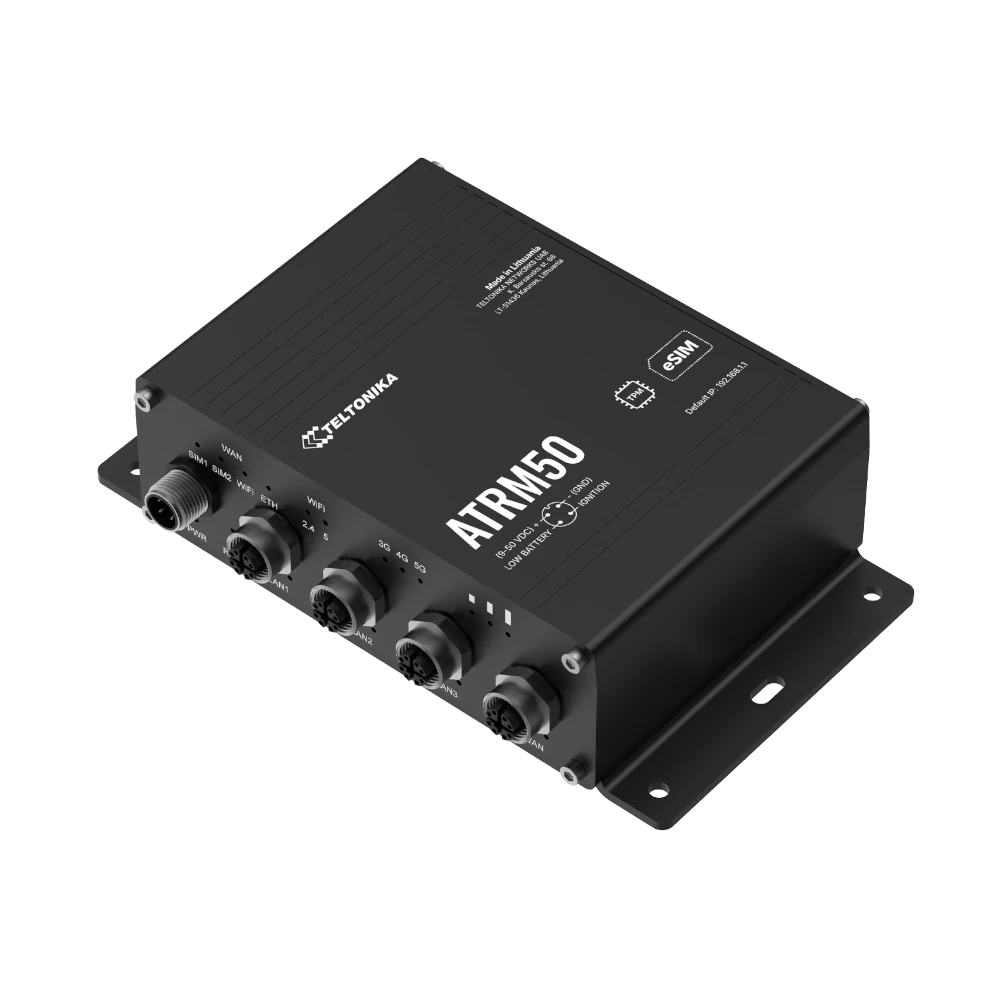

Teltonika ATRM50 transportation 5G WiFi router, which is an ideal choice for building transportation infrastructure on vehicles.

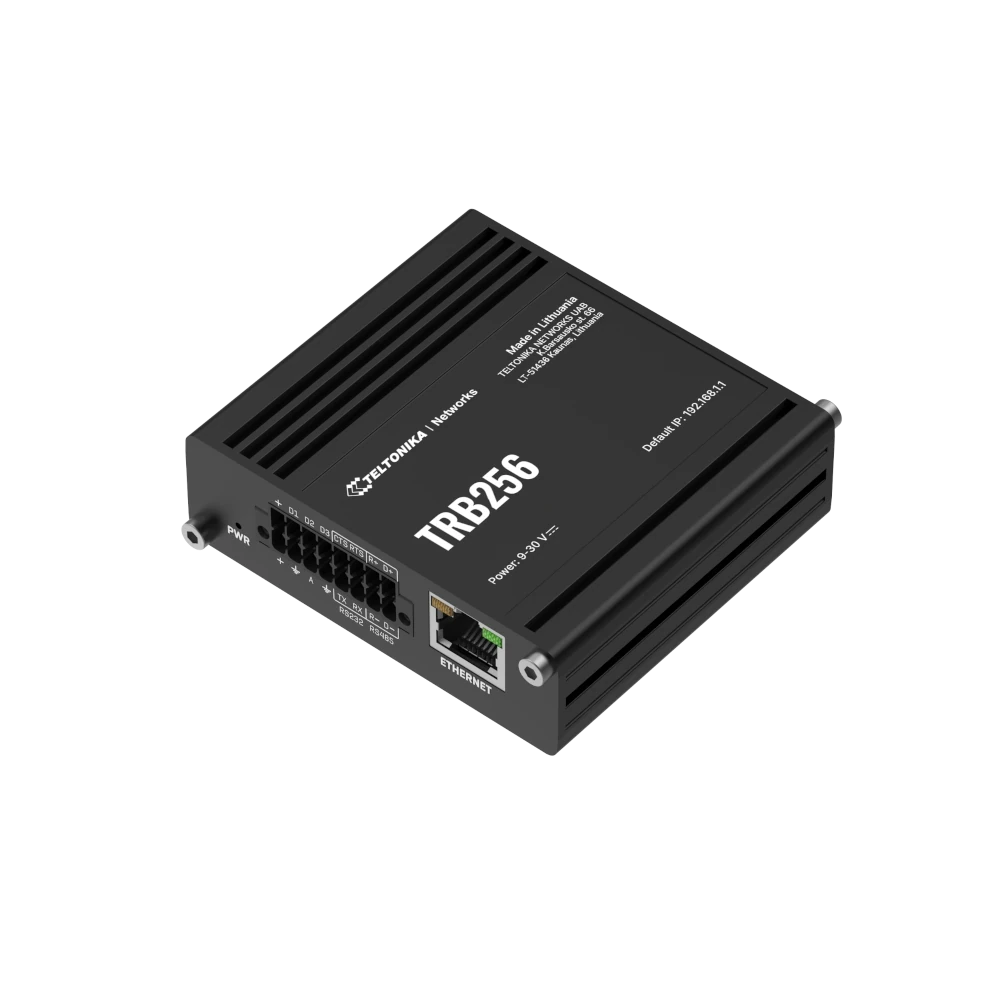

Teltonika TRB256 NB-IoT Gateway, which can support vehicle control and remote monitoring on Cat M1/Cat NB2/Cat NB1 LTE channels.

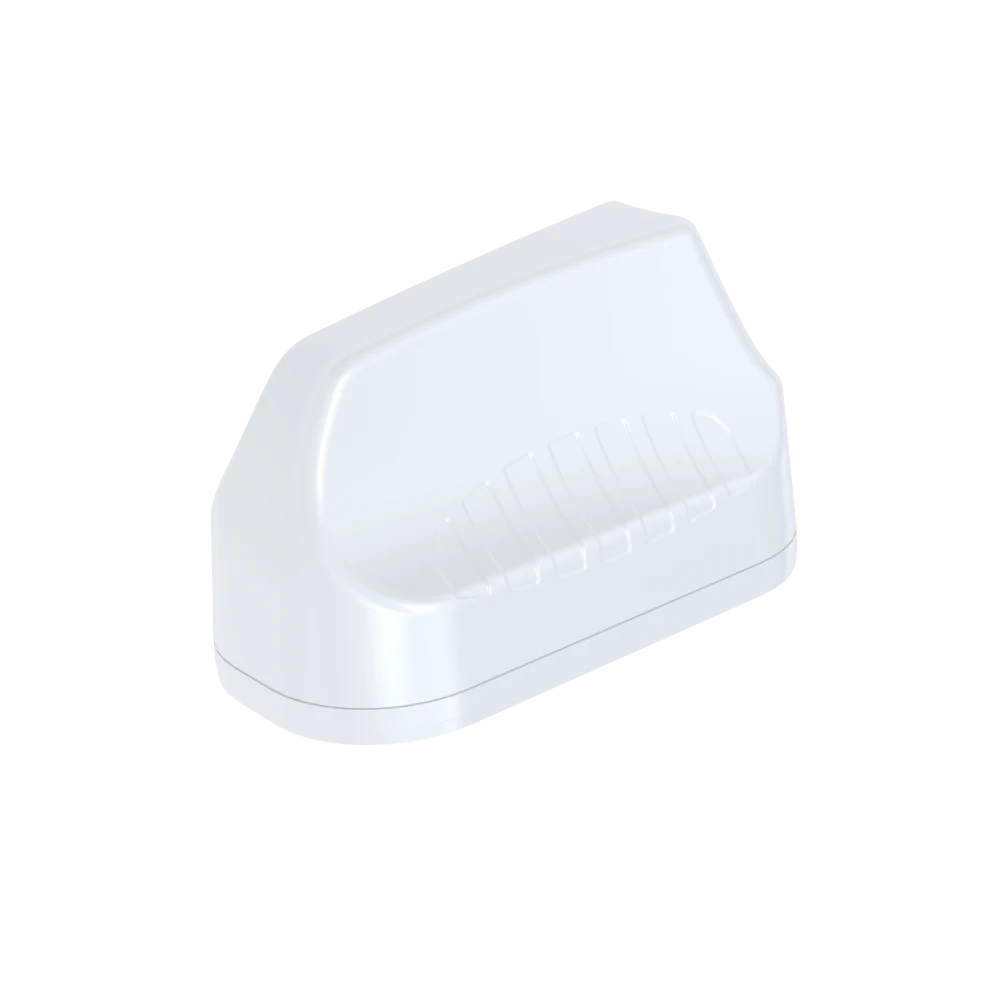

Poynting MIMO-3-15 transportation antenna, which provides 4G/5G internet access and WiFi access in vehicles with dual 2x2 MIMO connections.

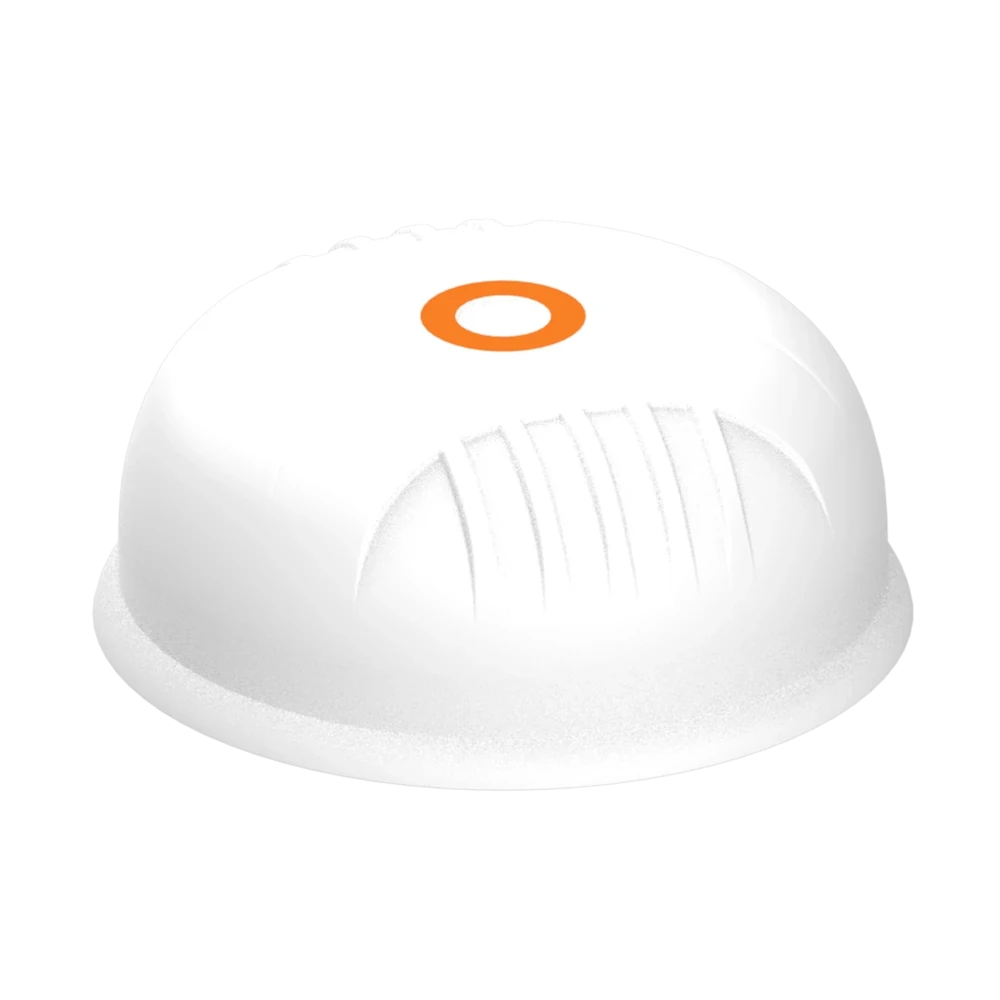

Omnidirectional, linearly polarized 4G/5G antenna that can provide in-vehicle mobile internet access, GPS connection, and WiFi access.

ADVANTAGES OF THE SYSWIND MODEL

The solution enables businesses to provide enterprise-level cyber security to all locations managing only one central NGFW firewall. Branch offices and remote sites are connected via secure, encrypted channel using cost-effective devices, nevertheless the remote access platform provides very simple central management for the entire network. The system is quick to deploy, easy to operate, and ideal for small to medium-sized site infrastructures.
